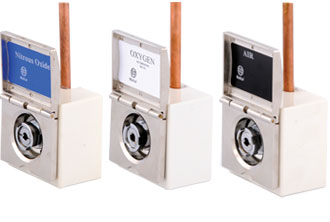

Medical Gases Outlet |
|
|
|
|
The MS Medical Gases Outlet is the wall source for medical gases.
And it's the end of the medical piping system on the wall. |
|
|
|
|
|
| - Outlet kind: Oxygen-nitrous oxide - Air (4bar ) – Air (7bar) – vacuum … etc |
| - Flow rate: 160L/min |
| - Work pressure: from3-8hour to 4.2 bar |
| - Maximum work pressure: double of woke pressure |
| - The outlet Designed: French, British & German standard and available for: |
 |
Surface mounting |
|
Bed head unit mounting |
|
Ceiling pendant mounting |
|
| - The outlet has double valve (one in the socket and the other in the first) |
|
90901896 –
O2 |
AFNOR Oxygen outlet |
90901897 – O2 |
BS Oxygen outlet |
90901898 – O2 |
BS Oxygen outlet |
| 90901896 – VIDE |

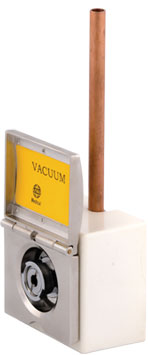

AFNOR Vacuum outlet |
90901897 – VIDE |
BS Vacuum outlet |
90901898 – VIDE |
BS Vacuum outlet |
90901896 –
Air (4 bar) |
AFNOR Air (4 bar) outlet |
90901897 – Air (4 bar) |
BS Air (4 bar) outlet |
90901898 – Air (4 bar) |
BS Air (4 bar) outlet |
| 90901896 – N2O |
AFNOR N2O outlet |
90901897 – N2O |
BS N2O outlet |
90901898 – N2O |
BS N2O
outlet |
90901896 –
Air (7 bar) |
AFNOR Air (7 bar) outlet |
90901897 – Air (7 bar) |
BS Air (7 bar) outlet |
90901898 – Air (7 bar) |
BS Air (7 bar) outlet |
| 90901896 – Nitrogen |
AFNOR Nitrogen outlet |
90901897 – Nitrogen |
BS Nitrogen outlet |
90901898 – Nitrogen |
BS Nitrogen outlet |
|
|
| |
 |
|

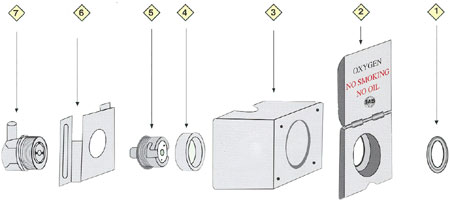

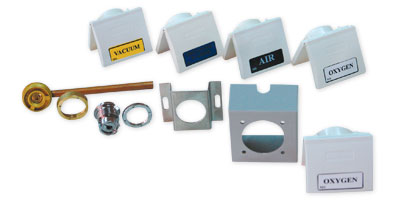

| Outlet - Ttechnical View: |
|
|
| 1. Fixed Nut: manufactured From brass Plated from Nickel Krum and it`s function is collecting all parts of outlet. |
| 2. Cover: manufactured From (Aluminum or Plastic ) and Have sticker which mentions the kind and the color of the gas. |
| 3. Box: manufactured from Plastic and the main Purpose from it is Protecting all Parts of the outlet. |
| 4. Fixed Nut: manufactured from brass. It's function is collecting the Socket Part and the First part. |
| 5. The Socket: Manufactured from brass: |
| - The second valve which contact with the prop |
| - The socket is Difference From gas to another |
| 6. Chaise: manufactured from stainless steel .main Purpose is Fixing all the outlet on the wall |
| 7. The First: manufactured from brass and it's function is working As a main valve for the outlet when there is any Emergency case. |
|
|
| |
| |
|
|
|
|

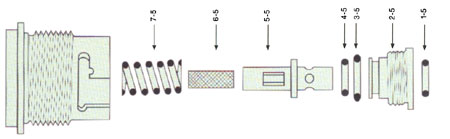

Socket Valve - Technical view: |
|
| 5-1 O-ring: manufactured from silicon and the main purpose of it is prevent leakage between the outlet and the prop . |
| 5-2 Body: manufactured from brass plated from nickel Krum it work as a Pass for collecting all parts of the socket valve . |
| 5-3 O-ring: Silicon ring prevent leakage between the outlet collecting body and socket valve. |
| 5-4 O-ring: Silicon ring : Prevent leakage in the socket valve area. |
| 5-5 Socket valve: manufactured from brass plated with Nickel Krum work as a pusher for the spring in the socket body. |
| 5-6 Filter: Stain lees steal filter and it be inside the socket valve |
| 5-7 Spring: manufactured from plated steal |
| 5-8 Fixed body: manufactured from brass plated with Nickel Krum and the main purpose of it collecting all parts of the socket inside it. |
|
|
| |

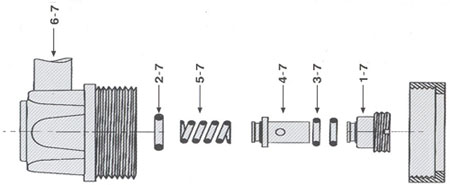

First Valve - Technical View |
|
| 7-1 Body: manufactured from brass main purpose is to collect all part of first valve. |
| 7-2 O-ring: Silicon ring to prevent leakage between first valve body and all internal parts of it. |
| 7-3 O-ring: Silicon ring to prevent gas leakage between the pusher and the end of the valve. |
| 7-4 First pusher: manufactured from brass plated with nickel Krum work as a pusher for the spring into the first valve body. |
| 7-5 Spring: manufactured from plated steal. |
| 7-6 Connecting pipe: manufactured from brass to connect the outlet with piping system. |
|
|
| |
| |
|
